Specifications:-

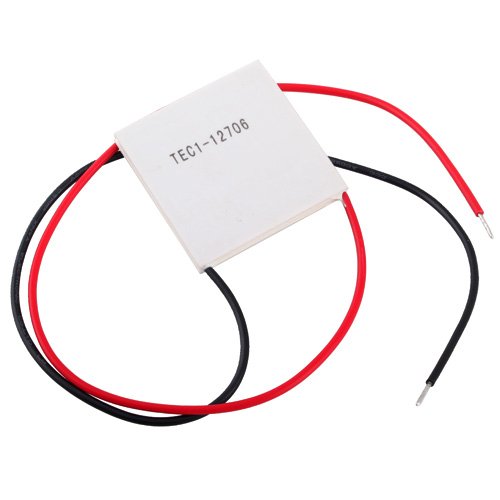

- Model number: TEC1-12706
- Operating Voltage: 12V
- Maximum Voltage- Vmax (V) : 15V
- Maximum Current- Imax (A) : 6A
- Maximum Power: 60 W
- Element Logarithmic: 127
- Wire size: lead length 300mm ± 5mm RV standard wire single head 5mm tinned
- Internal Resistance: 4.0 ~ 4.3Ω
- Working Environment: temperature range -55°C ~ 80 °C (high ambient temperatures drop directly affect the cooling efficiency)
Operating Tips:-
- Do not exceed Imax or Vmax when operating the module.
- Please carry out moisture protection options (sealing) in final application use.
- Life expectancy: 200,000 hours
- Failure rate based on longtime testings: 0.2%.
Features:-
- Small module.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of supply.
- Quality tested cooling cells.
- Solid-state, vibration free, noise-free.
- Simple to install and operate.
- Should use with a heat sink.
