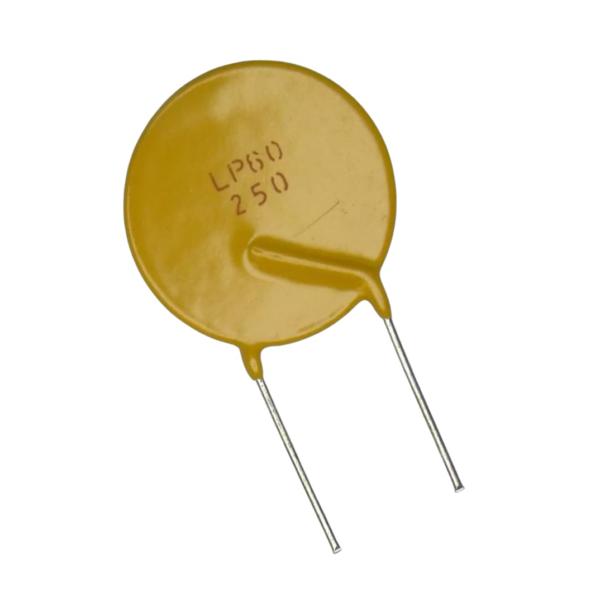

Fuse LP60-250 PTC Resettable

Features:
Little fuse Radial-Leaded Resettable PTCs are designed to provide overcurrent protection for applications where space is not a concern, and resettable protection is preferred.
With so many options in the radial-leaded PTCs family, engineers can design with more flexibility.
The components feature current ratings from 50mA to 15A, low resistance, and a fast time-to-trip. Higher voltage ratings (6V to 72V) allow for use in new applications.
Little fuse Radial-Leaded Resettable PTCs are compatible with high-volume electronics assembly and can assist in meeting regulatory requirements.
Specifications:
Product Attribute Attribute Value
Product Category Resettable Fuses – PTC
Type Poly Fuse Resettable PTC
Series 60R
Model LP60-250
Mounting Style PCB Mount
Termination Style Radial
Hold Current 2.5 A
Maximum Voltage 60 VDC
Trip Current 5 A
Current Rating (Max) 40 A
Pd – Power Dissipation 2.5 W
Resistance 130 mΩ
Operating Temperature – 40 C to +85
Lead Spacing(Approx.) 10 mm
Diameter(Approx.) 20 mm
Total Length(Approx.) 36 mm
Applications:
Consumer electronics.
Power line, telecom.
I/O port.
Process control.
Medical equipment protection applications.
