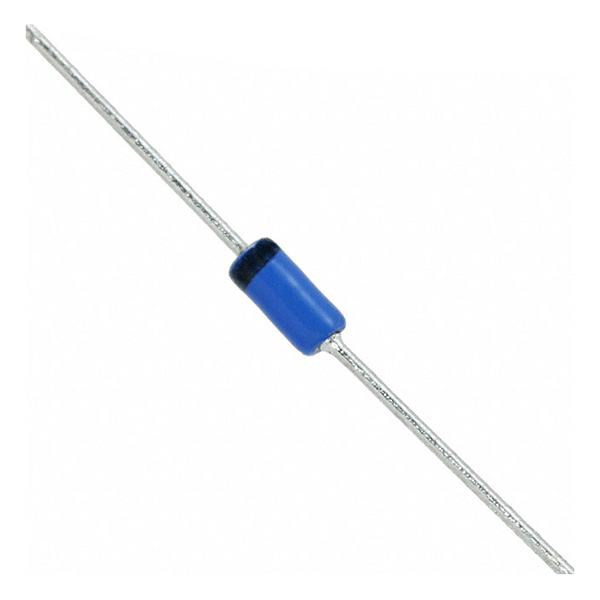

Diode BAT43 30V 200mA

Features:
Low forward voltage drop (typically 0.3V at 100mA)
Fast switching speed suitable for high-frequency applications
Compact DO-35 package ideal for through-hole mounting
RoHS compliant
Specifications:
Specification Details
Diode Type Schottky
Package DO-35 (Through-Hole)
Repetitive Peak Reverse Voltage (V_RRM) 30V
Forward Continuous Current (I_F) 200mA at Ta = 25°C
Forward Voltage (V_F) Max 0.45V at 15mA
Reverse Current (I_R) Max 500nA at 25°C
Power Dissipation (P_tot) Max 200mW at T_l = 65°C
Storage Temperature Range -65°C to +150°C
Operating Junction Temperature (T_j) -65°C to +125°C
Applications:
Signal demodulation in communication circuits
Clamping and protection circuits
High-frequency switching applications
Voltage regulation in low-voltage circuits
