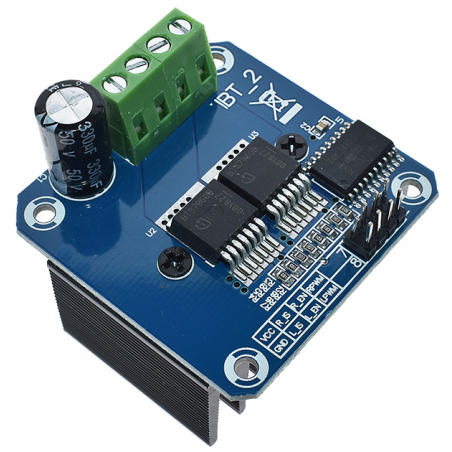

DC Motor Driver 43A BTS7960 H-Bridge High-Power

BTS7960 H-Bridge High-Power DC Motor Driver 43A
The H-Bridge High-Power DC Motor Driver 43A is a fully integrated H-bridge module engineered for driving high-current DC motors. Utilizing dual BTS7960 half-bridge drivers, it supports continuous currents up to 43A and operates within a voltage range of 6V to 27V. The module features logic-level inputs, current sensing, and comprehensive protection mechanisms, including overtemperature, overvoltage, undervoltage, overcurrent, and short-circuit safeguards. Its design ensures reliable performance in demanding applications, making it suitable for robotics, automation, and electric vehicle systems.

Features
Dual BTS7960 half-bridge drivers for high-current applications.
Supports continuous current up to 43A.
Wide operating voltage range: 6V–27V.
Logic-level control inputs compatible with 3.3V and 5V systems.
Integrated current sensing for diagnostics.
Overtemperature, overvoltage, undervoltage, overcurrent, and short-circuit protection.
PWM control capability up to 25kHz.
Adjustable slew rate for optimized electromagnetic compatibility.
Compact design with provisions for heat dissipation enhancements.
Built in heat sink.
Specifications
Parameter Value
Operating Voltage 6V–27V
Continuous Current 43A
Logic Input Voltage 3.3V–5V
PWM Frequency Up to 25kHz
Protection Features Overtemp, Overvoltage, Undervoltage, Overcurrent, Short-circuit
Dimensions 50mm x 50mm x 40mm
Applications
High-power DC motor control in robotics and automation.
Electric vehicle drive systems.
Industrial conveyor and actuator control.
DIY projects requiring robust motor control solutions.
PINOUT
Package Contents
1x BTS7960 H-Bridge High-Power DC Motor Driver 43A.
Datasheets
Driver Module Datasheet.
BTS7960 Bridge Datasheet.
